Product Features Files and Drivers
Specifications
  • Electrical specification
  • Rated battery voltage 51.2V
  • Rated capacity 10kWh
  • Nominal capacity 200Ah
  • Combination 16S1P
  • Cycle life ≥8000 cycles @80% DOD @25°C
  • Monthly self-discharge 3%/month
  • Charge efficiency ≥97%
  • Discharging efficiency ≥98%
  • Charging standard
  • Recommended charging voltage 57.6V
  • Recommended charging current 40A
  • Maximum charging voltage 58.4V
  • Maximum charging current 200A
  • Discharging standard
  • Maximum charging current 100A
  • Maximum discharge current 200A
  • Discharge cut-off voltage 43.2V
  • Physical
  • Dimensions(W*D*H)(mm) 555*505*260mm
  • Package size(W*D*H)(mm) 670*560*420mm
  • Net weight (kg) 88.5±1kg
  • Gross weight (kg) 102±1kg
  • IP protection IP30
  • Shell material Metal
  • Optioanal functions Anti-theft LCD
  • Environment
  • Charging temperature range 0°C~45°C
  • Operating temperature range -20°C~60°C
  • Storage temperature 0°C~40°C
  • Humidity 10% to 85% RH (No condensing)
PDF
Search Neutron

Hızlı Bağlantılar

Smart water purifier
Smart hot/cold water purifier
Autonomous cleaning robot
AHD cameras
Wifi smart burglar alarm
Price list
NTSB-WB512-MS10240

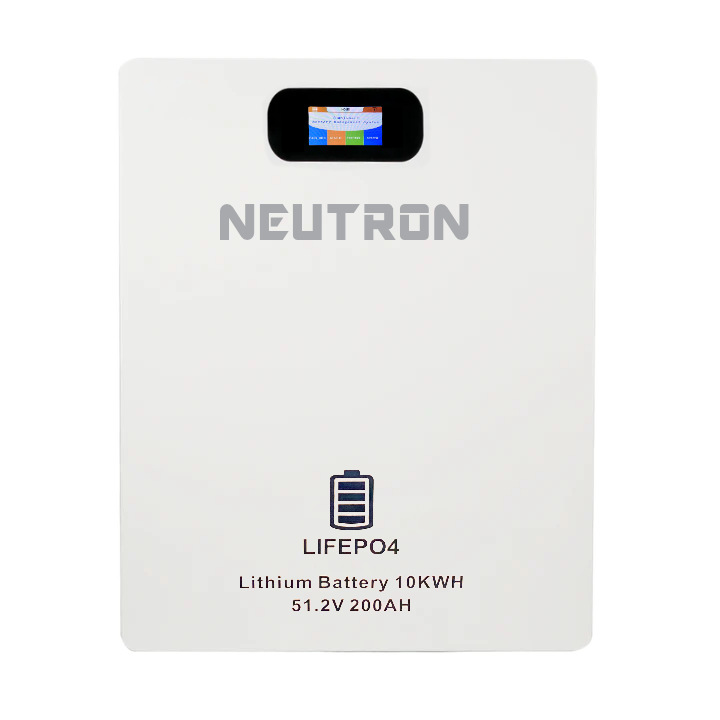

NTSB-WB512-MS10240 LITHIUM BATTERY LIFEPO4 10KWA 51,2V

Specifications
Files/Drivers

* Top brand A-grade LifePO4 battery, super safe

* Support wall-mounted or floor-standing installation

* Cycle Life: Up to 8000 cycles

* Smart BMS perfectly matches solar system

* Support multiple battery packs in parallel

* Multiple communication protocols match 10+ brands inverter
